Cloud

Let’s talk following System/Cloud Architecture subjects!

Multi-Region/FailOver
Distributed Tracing
Distrbuted Configruation
Function as a Service (FaaS)

Multi-region/FailOver

Having our application hosted in multiple regions not only improve overall latency but also provide a way to fail over in event of any regional outage. Furthermore, a centralized domain - say example.com instead of example.east.com and exmaple.west.com - should be used with a DNS Service like AWS Route53 that takes care of routing.

Technologies used:

Helm
AWS Route53
Kubernetes

Say a service needs to be hosted in both AWS us-east-1 and us-west-1 regions. We can define our helm definitions as below:

# us-east-1 definition
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginx
  annotations:
    external-dns.alpha.kubernetes.io/aws-region: us-east-1
    external-dns.alpha.kubernetes.io/set-identifier: east

---
# us-east-2 definition
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginx
  annotations:
    external-dns.alpha.kubernetes.io/aws-region: us-west-1
    external-dns.alpha.kubernetes.io/set-identifier: west

Should result in the below record creation:

Record name	Type	Routing Policy	Differentiator	Value/Route traffic to
example.com	CNAME	Latency	us-east-1	default.east.domain
example.com	CNAME	Latency	us-west-1	default.west.domain

Note that default.east.domain is a default domain that is generated by another AWS Service, such as API Gateway, Application/Network Load Balancers.

Distributed Tracing / Observability

Technologies used:

Spring Cloud
Micrometer, Brave & Zipkin
Splunk

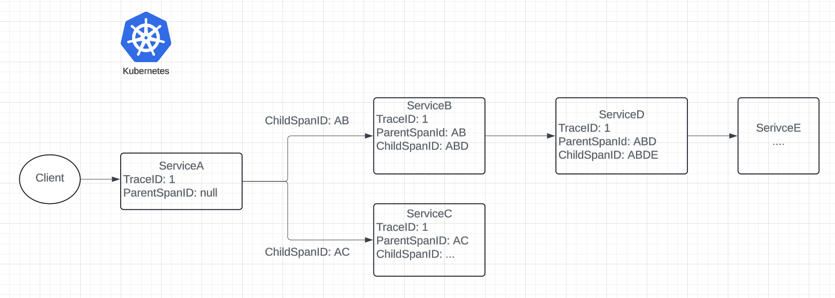

In distributed tracing, a span tree is constructed as illustrated with below diagram:

Distributed Tracing

Given above setup, it becomes intuitive to trace the life cycle of a client request. In each downstream call, we can observe the internal state of the request by looking up its spanId.

Console logs:

serviceA:

2024-04-01T21:27:38.114-04:00 INFO [serviceA, 6628600af2d1ca0962633e65588ac84b, ae3cd4c90aeeb72a] 19380 — [pool-2-thread-1] io.github.yangfan.core.foo.ServiceBClient : [ServiceBClient#getUsers] —> GET http://api.serviceB.com/users/1 HTTP/1.1

serviceB:

2024-04-01T21:27:38.114-04:00 INFO [serviceB, 6628600af2d1ca0962633e65588ac84b, f47ac261b3f3c2e7] 19380 — [pool-1-thread-1] GET /users?id=1

Splunk:

We can query all the relevant logs using traceId or parent-child relationship using spanId:

index=serviceA_dev traceId=6628600af2d1ca0962633e65588ac84b

Distributed Configuration

As we deploy an application across different environments, we’d need to externalize application specific configurations. It makes sense to centralize these configurations in a single service as opposed managing each application separately. There are several solutions to this. Two notable ones are:

Consul
Cloud Config (Based on Git repository)

Consul

HashiCorp’s Consul offers a feature allows us to update application configuration on a fly, and across all services in a central store. If using Spring Boot, we can simply include a starter dependency and configuration url:

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-consul-config</artifactId>
</dependency>

And application properties:

# bootstrap.yaml
spring:
  cloud:
    consul:
      host: localhost
      port: 8500
      config.enabled: true

# actuator
management:
  endpoints:
    web:
      exposure:
        include: refresh

And with configuration beans annotated with @RefreshScope, we can simply update Consul and invoke /actuator/refresh API to rebind application properties.

@RefreshScope
@ConfigurationProperties("my.app")
@Configuration
public class MyAppConfig {
    //...
}

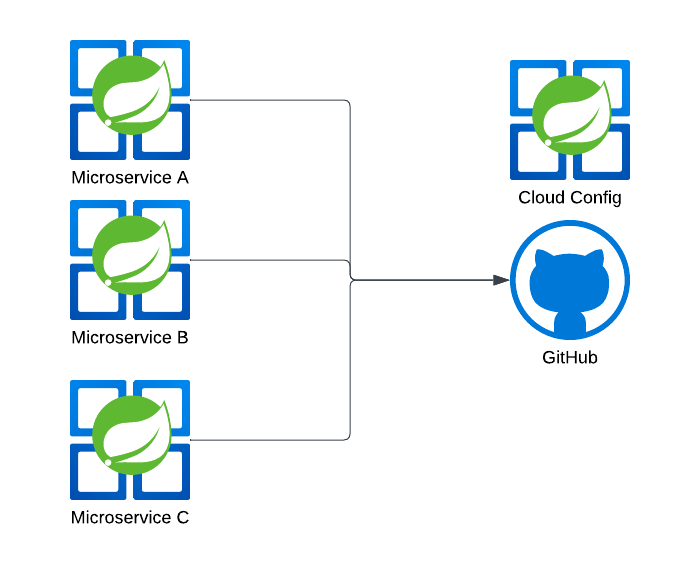

Cloud Config

how do we treat application configuration updates as a versioning system? Spring Cloud Config offers this solution. We can actually store the history of all configuration changes in a Git repository, with each service maintaining a version tag like so:
